Difficulty Level: Novice | Time Required: 5 minutes | Tools Required: None | Related Parts, Products, Services or Technology: Key fob
Available Hands-Free Power Liftgate with logo projection and programmable height, if equipped, lets you open and close your liftgate with a simple kicking motion below the bumper. On some vehicles, an illuminated logo projection will appear on the ground to show you where to kick.
Open Your Hands-Free Power Liftgate
- With your key fob in your hand, pocket or bag, approach the liftgate.
- The logo projection will automatically turn on as you get within 1.8 metres (6 feet) of the rear of your vehicle.
- Kick straight over the logo, or at the sensor for older vehicles. Note: Kick straight within .127 metres (5 inches) of the bumper — sweeping the foot side to side or stepping on the logo projection will not activate the sensor.
- The liftgate will open after giving you time to safely step away. The rear lights will flash and a sound will chime to alert you that the liftgate is opening.
You can also use a kicking motion to close the liftgate:
- Kick straight over the logo projection, or at the sensor for older vehicles.
- After a two-second delay, the rear lights will flash and a sound will chime to alert you that the liftgate is closing.
Adjust Your Liftgate’s Lift Height

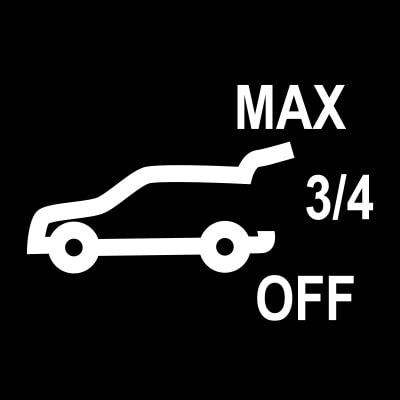

The power liftgate has the following lift-height presets:
- MAX — Liftgate opens to its maximum height
- ¾ — Liftgate opens to three-quarters of its maximum height
- OFF — Liftgate can only be opened manually
To tailor how high your liftgate will rise:
- Select the ¾ setting on the liftgate switch.
- Open the liftgate.
- Manually adjust the liftgate to the desired height.
- Press and hold the button next to the liftgate latch for three seconds. The location of this button will vary depending on your vehicle. The turn signals will flash and a chime will sound once the setting is stored.
Try these troubleshooting tips:
- Make sure your kick is not too fast or slow. The “in” and “out” kicking motion should be completed within one second
- Move closer to your vehicle
- Kick directly toward the underside of your vehicle. Do not kick the bumper
- Make sure that your kick comes within .127 metres (5 inches) of the bumper of your vehicle
- Make sure that your key fob is within approximately 1 metre (3 feet) of your vehicle
The logo projection only helps you find the location where you should kick. It doesn’t affect the hands-free control of the liftgate.
The logo projection only illuminates for 60 seconds at a time. If it’s already on when you come back, it will stay on for 60 more seconds.
There are several explanations that could apply:
- Only certain key fobs — your vehicle fobs associated with Drivers 1 and 2 — will turn the projection on. Your fob may not be able to illuminate the logo projection
- The battery may be in a cool-down period to preserve its charge. This happens when the logo projection has been turned on five times in 5 to 10 minutes. It will illuminate again after an hour
- If the logo projection is still not showing, ensure the underside of the vehicle is clean and clear of debris
- If you approach the liftgate and stay there for several minutes, the projection will not turn on the next time the liftgate is used
- If the vehicle hasn’t been used in 10 consecutive days, the logo projection will not turn on
In any of the above scenarios, your liftgate will still open with a kick.
Looking for something else?
NEED MORE HELP?
Communicate with one of our specialists.
To find out if your vehicle has this feature, contact your dealer or refer to your vehicle’s equipment list. Please check your Owner’s Manual for more information about features.
